Today, Wuxi Rihuan Sensor Technology Co., Ltd. will introduce to you why the magnetic switch sometimes "fails to detect" the piston when installed on the cylinder? - The installation position and the strength of the magnetic ring are the key factors.

In pneumatic control systems, magnetic switches are widely used to detect the position of the cylinder piston and its return. It relies on sensing the magnetic field generated by the permanent magnetic ring embedded in the piston to trigger the signal. However, many sites have encountered the same problem: even though the switch was newly replaced and the wiring was checked, when the cylinder moves, the magnetic switch is "unresponsive", or the signal is intermittent. This is usually not due to a malfunction of the switch itself, but rather problems with the installation position or the state of the magnetic ring.

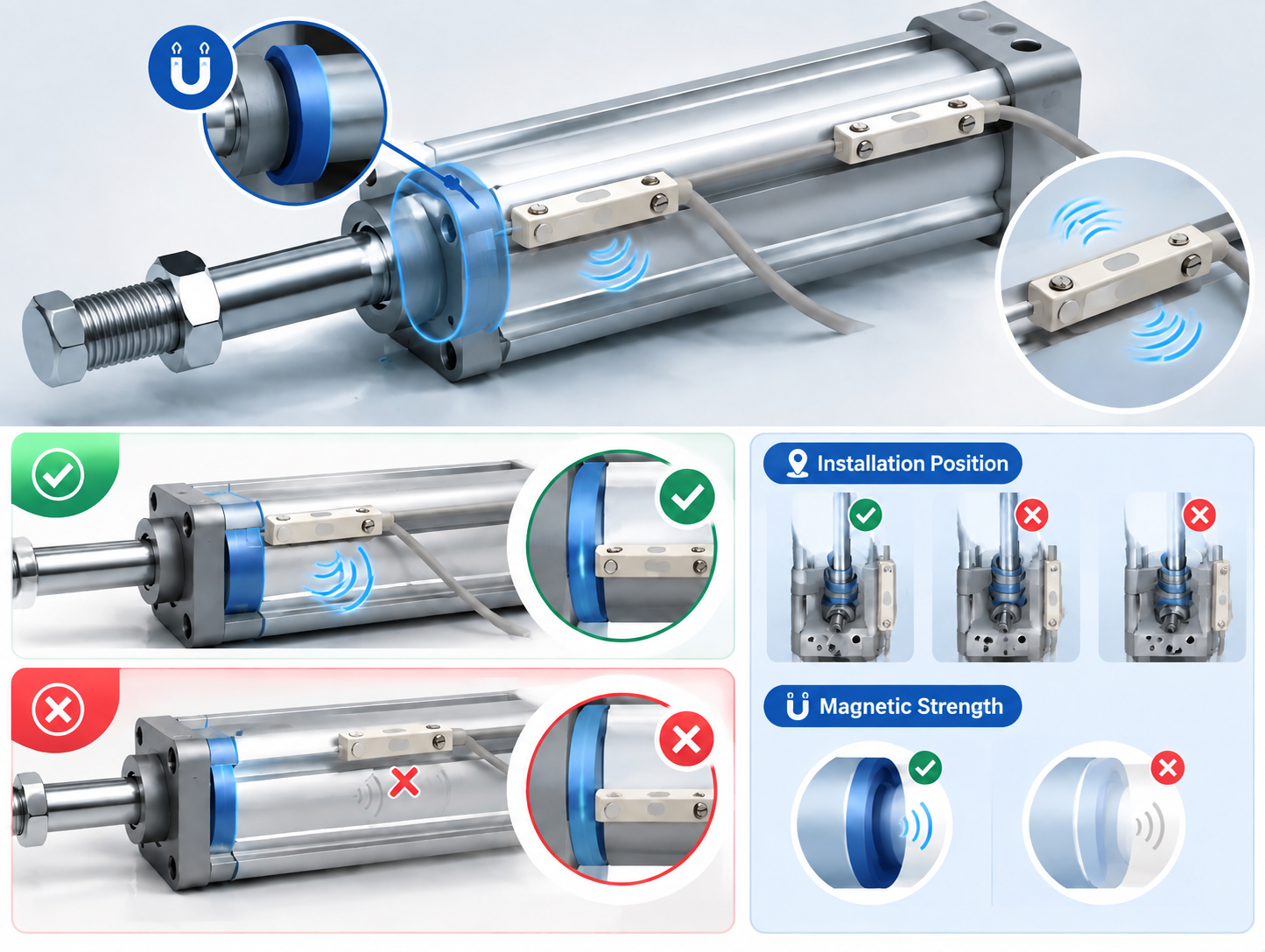

1. Installation Position: A Difference of a Millimeter Can Lead to a Thousand Miles of Error

The triggering of the magnetic switch depends on the magnetic field of the magnetic ring passing through the cylinder barrel and still being captured by the switch's sensing element. The cylinder barrel is usually made of weakly magnetic materials such as hard aluminum or stainless steel to allow the magnetic field to effectively penetrate. However, the magnetic field intensity decays extremely rapidly with distance, and once the switch deviates from the movement trajectory of the magnetic ring or is too far away, it will completely lose its sensing ability.

1. The switch must be aligned with the movement trajectory of the magnetic ring

The sensing surface of the magnetic switch must face the moving path of the magnetic ring. If the switch is tilted during installation or not aligned with the actual position of the magnetic ring passing through the piston stroke, there will be a situation where "the piston has arrived, but the signal has not come". The correct approach is: slowly move the switch along the sliding groove of the cylinder to find the position where the switch triggers exactly when the magnetic ring passes, and then fix it.

2. Detection Distance Has a Clear Range

The detection distance between the magnetic switch and the magnetic ring is usually only a few millimeters. Generally, it is recommended to install the switch within ±2mm of the center of the magnetic ring, with a detection gap controlled between 0-5mm, and the initial setting can be around 3mm. If the switch is too far from the magnetic ring, the magnetic field will decay below the detection threshold of the switch and will not trigger; if it is too close, it may cause false actions due to magnetic saturation or vibration.

3. Installation at the end of the cylinder stroke requires reference to the cylinder calibration values

When the switch is installed at the end of the cylinder stroke, the cylinder manufacturer usually marks the distance A and B from the end cover to the switch in the sample. This position is the "high sensitivity position" where the magnetic field intensity is the highest when the magnetic ring passes. If the installation is done randomly without referring to these calibration values, it may fall into an area with insufficient magnetic field intensity.

4. The bracket material cannot be iron

If the bracket used to fix the magnetic switch is made of iron material, it will shield the magnetic field of the magnetic ring, causing the switch to be unable to sense. It is recommended to use aluminum alloy or stainless steel materials for the bracket.

2. Magnetic Ring Strength: The "Decay" of the Signal Source Itself

Even if the installation position is completely correct, if the magnetic ring itself has insufficient magnetic field strength, the switch will also not be triggered. The magnetic ring is the "signal source" of the magnetic switch, and if the signal source is weak, no matter how sensitive the switch is, it will be of no avail.

1. Magnetic Ring Demagnetization or Insufficient Magnetic Field Strength

The magnetic ring on the cylinder piston is usually made of permanent magnetic materials such as neodymium iron boron. However, in long-term use, high-temperature environments, or when stored for an extended period, the magnetic ring may demagnetize. If the working temperature of the cylinder exceeds the tolerance temperature of the magnetic ring (for ordinary neodymium magnets, approximately 80°C), the magnetic force will permanently decay or even disappear. In hydraulic cylinder scenarios, an increase in oil temperature will also weaken the magnetic ring's magnetism.

2. Missing Magnetic Ring or Incorrect Installation Position

Although rare, it is possible that there is no magnetic ring installed on the cylinder piston. Some cylinder models do not support magnetic induction switches, and the piston does not have a built-in magnetic ring. In such cases, no matter how many switches are replaced, there will be no signal.

3. Incompatible Magnetic Ring Polarities

The magnetic ring on the cylinder has N and S poles. Some magnetic switches have polarity requirements on their sensing surface. If the magnetic ring is installed in the wrong direction or the magnetic ring orientation changes due to a different batch of cylinders being used, there may be a situation where the switch cannot sense.

III. Rapid Troubleshooting: First, determine whether it is a switch issue or a magnetic ring issue.

When encountering the situation of "no piston detection", do not rush to replace the switch. A simple and effective method for judgment is the swapping test:

Exchange the non-operating position switch with another normal working switch on the same cylinder. If the problem follows the switch - still not working after moving to the normal position - it indicates that the switch is damaged; if the problem remains at the original position - still no signal after replacing with a normal switch - it can be basically determined to be a problem with the cylinder's magnetic ring or installation position.

IV. Selection and Installation Precautions

When selecting, the sensitivity (action distance) of the switch must match the designed magnetic field strength value of the cylinder's magnetic ring. The magnetic ring strength of different cylinders is different, and the performance of the same model of switch on different cylinders may vary significantly. For high-temperature environments, choose magnetic rings that are resistant to high temperatures and corresponding protective levels of switches. After installation, the torque of the screws should be appropriate - too much torque will damage the switch, and too little torque may cause the switch position to shift. During daily maintenance, regularly check if the installation position has shifted, especially on equipment with strong vibrations.

Summary

Problem Type Common Causes Troubleshooting Methods

Installation Position Not aligned with the magnetic ring track, too far or too close, shielding of the bracket by the material Slowly move along the slot to find the trigger point, check the bracket material, and verify the end calibration value

Magnetic Ring Strength Demagnetization, temperature-induced attenuation, missing magnetic ring or reversed installation Exchange test method to determine the switch or magnetic ring issue. If necessary, measure the magnetic field strength with a gauss meter

Others Switch damage, abnormal power supply, external magnetic field interference Measure the output signal with a multimeter, check the power supply voltage, and stay away from strong magnetic equipment

Magnetic Switch Unable to Detect Piston, More than 90% of the problems lie in the installation position or the magnetic ring, rather than the switch itself. The exchange test method can quickly locate the source of the problem and avoid blind replacement.
